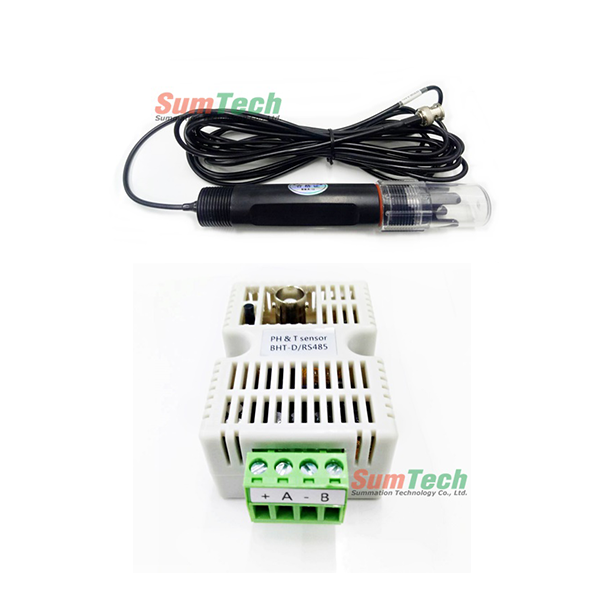

PH and Temperature Transmitter 4-20mA

Technical parameter

• Measuring range pH: 0.0~14.0
• Measuring range temperature: -20°C ~+80°C
• Measurement accuracy pH: ±0.1PH
• Measurement accuracy temperature: ± 0.5°C
• Working voltage DC: 12V ~ 24V (ripple < 50mV)
• Signal output: 4 - 20 mA
• Power waste: <1W
• Storage environment temperature: 10°C - 50°C (-20°C ~ +80°C peak)
• Storage environment humidity: 20 - 60%RH
• Work environment temperature: -20°C ~+80°C
• Work environment humidity: 5 - 95%RH (non-condensing)
• Shape size: 65mm*46mm*28.5mm

Interface Description

          Before you wiring and use, please read this article in detail, Improper use may result in irreversible damage to the product.
