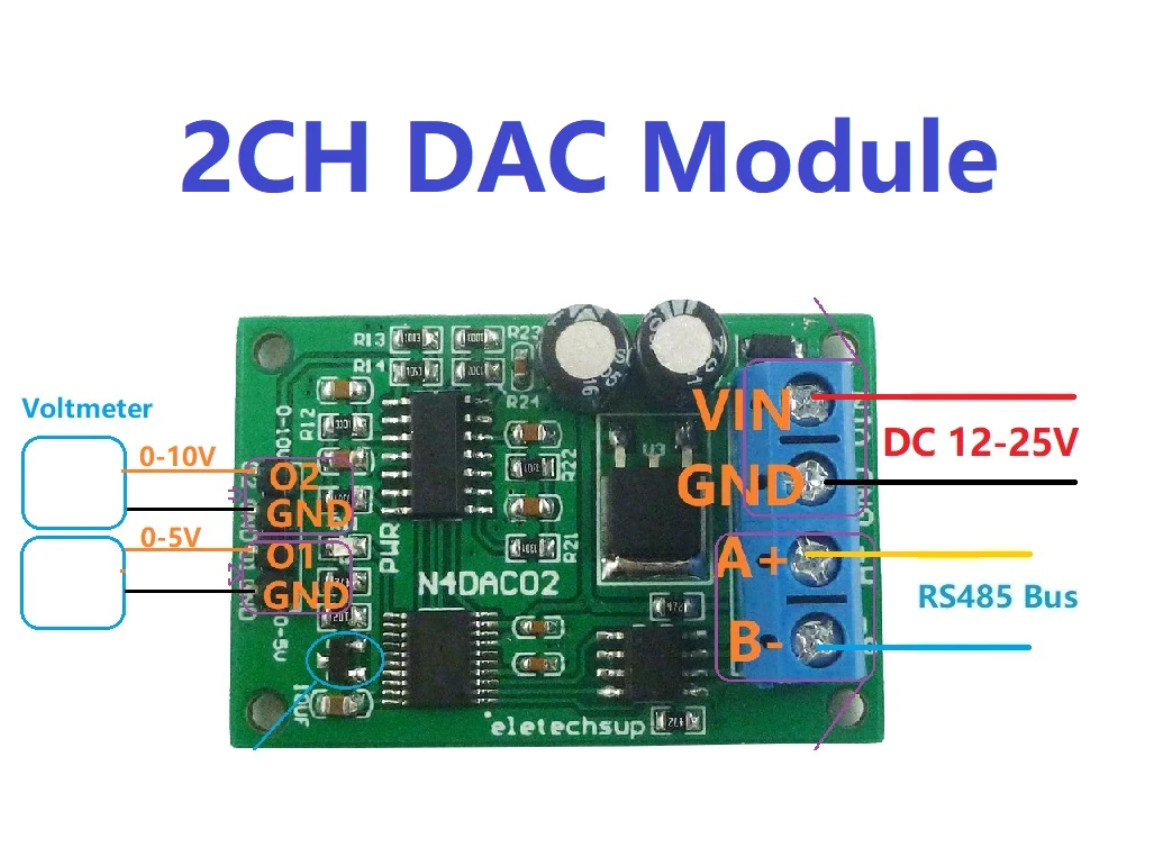

Modbus RS485 to 0-5V 0-10V Voltage Signal Generator DAC

1: Operating Voltage : DC 12 (DC 12-25V), recommended power supply with small ripple
2: Operating Current : 12-13MA
3: MODBUS RTU Command support 03 06 function code
4: CH1(O1) output voltage is 0-5V, maximum output current is 20MA. 1-5V accuracy 1%, <1V there is a ripple of 50HZ/40MV.
CH2(O2) output voltage is 0-10V, maximum output current is 20MA. 2-10V accuracy 1%, <2V there is a ripple of 50HZ/80MV.
5: The voltage resolution is 0.01V, the output accuracy is 1%; if the error is greater than 1%, it can be calibrated
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8 :Size: 45 * 35 * 15mm
9 :Weight: 10g
