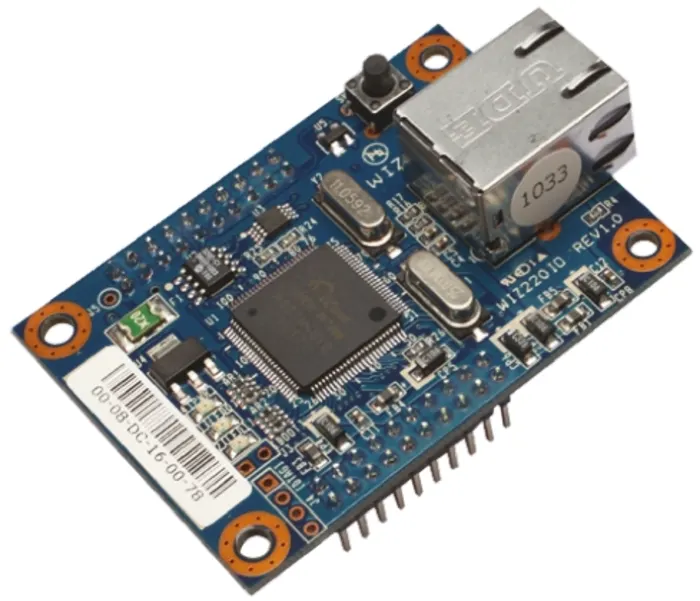

WIZ220IO-Webserver Based IO Control Module

Description: WIZ220IO is an embedded remote I/O module which is able to control and monitor I/O port remotely via Internet. It is possible to monitor and control I/O port by using Windows application program or the embedded Web server. There are 16 digital I/O ports and 4 analog I/O supported by WIZ220IO. Additionally, the firmware and embedded webpage can also be updated remotely through the Ethernet.



Features:

Operates as HTTP Server

using W7100, all in one embedded network MCU with hardwired TCP/IP stack

Provides Configuration Tool Program for easy control, monitoring and configuration

Supports 10/100Mbps Ethernet

8 Digital Input Ports

8 Digital Output ports

2 Analog Input Ports with 12bit resolution (Voltage Type)

2 Analog Output Ports with 12bit resolution (Voltage Type)

1 UART Output Port

Data acquisition and transmitting to specified host

RoHS Compliant

Specifications:



Architecture

   MCU

     Standard 8051 compatible in W7100

   PHY

     Included in W7100

   TCP/IP Stack

      Hardwired TCP/IP Stack in W7100

Network

     Network Protocols

         ARP

         ICMP

         TCP/IP

         UDP

         HTTP Server

         DHCP

Network Interface

        RJ-45

        Auto-MDIX

        Auto-Negotiation

Digital

   Input

       CMOS Digital Input

   Output

       CMOS Digital Output

   UART

      1 UART output

      Baud rate : 1200bps ~ 230400bps

      Databit : 7bit, 8bit

      Parity : none, odd, even

     Stopbit : 1bit

     Flow control : none, RTS/CTS

Analog

     Input 12bit resolution. Input Range(0 ~ Vcc)

  Output 12bit resolution. Output Range(0 ~ 4v)

Power

     Input Voltage DC 5V

 Power Consumption Under 280mA @ 5V

Environment

     Temperature

     0°C ~ 70°C (Operation)

     -40°C ~ 85°C (Storage)

     Humidity

     10 ~ 90%
