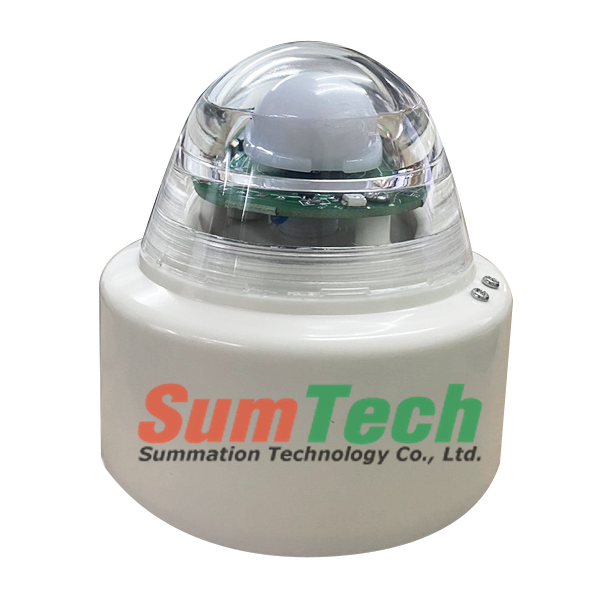

Integrated optical rainfall and illumination

Technical parameter

• Rain-sensitive diameter : 6 CM
• Power consumption : Less than 0.24W
• Light intensity range : 0-200,000 Lux
• Maximum instantaneous rainfall : 24 mm/min
• Response time(T90, seconds) : 0.5 ms
• Resolution rainfall : Standard 0.1 mm
• Resolution illumination : 1 Lux
• Typical accuracy rainfall : ± 5% (from Prieson Labs)
• Typical accuracy illumination : ± 7% ( 25℃ )
• Baud rate : 1 : 2400/ 2 : 4800/ 3 : 9600
• Output method : RS485/ pulse output
• Power supply : 10-30V DC
• Energy consumption : ≤ 0.24W (12VDC, current less than 20 mA)
• Operating temperature : - 40~ + 60℃
• Operating humidity : 0 % ~ 99 % RH (relative humidity), non-condensing
• Operating pressure range : Standard atmospheric pressure ±10%
• Long-term stability illumination :  ≤ 5%/y
• Size / Dimension : 20X15X10 cm
• Accuracy :  ± 5 %
