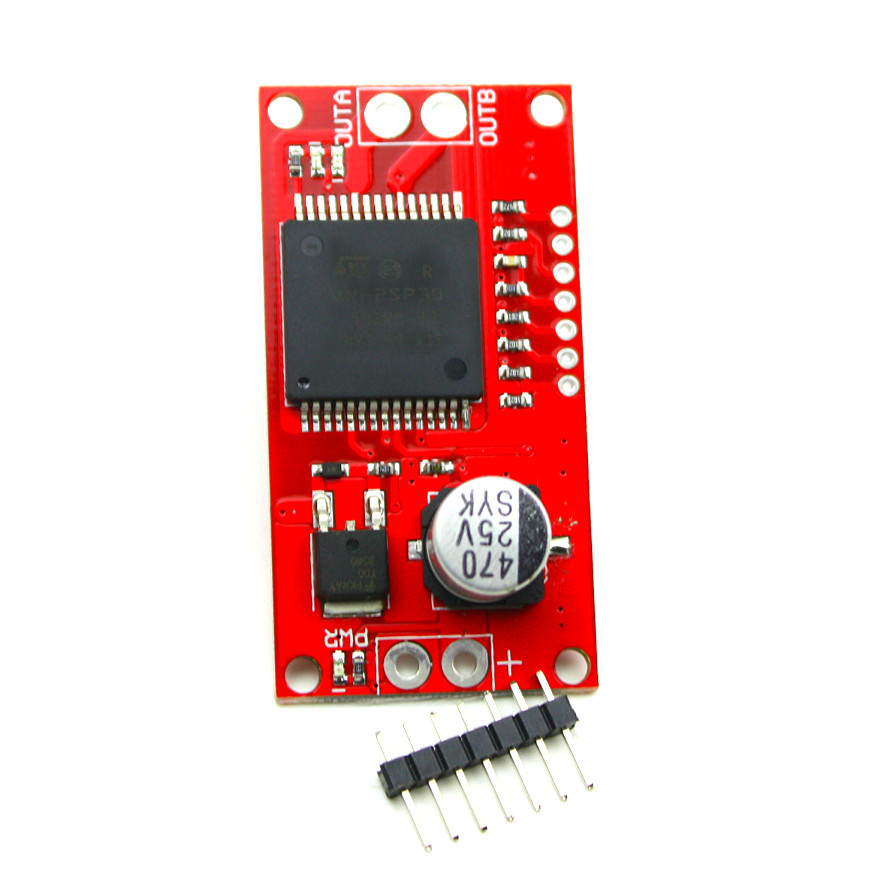

VNH2SP30 Motor Driver 30A (1CH)

บอร์ดควบคุมความเร็ว DC motor แบบ H-bridge ขับกระแสได้สูงสุด 30A



Features:

Voltage max: 16V

Maximum current rating: 30 A

Practical Continuous Current: 14 A

Current sensing available analog pin

MOSFET on-resistance: 19 mΩ (per leg)

Maximum PWM frequency: 20 kHz

Thermal Shutdown

Undervoltage and Overvoltage shutdown



Description: This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we\'ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We\'ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.
