35mm DIN rail mounting,
9-30VDC wide voltage supply
Description
คุณสมบัติ :
- 35mm DIN rail mounting, 9-30VDC wide voltage supply
- 1.5KV galvanic isolation with surge protection
- High-quality 3-way isolation between all interfaces
- 128+ nodes on bus
- LED Indicators for Data Transmission and Bus Faults
- Self-adapting baud-rate from 1.2Kbps up to 187.5Kbps
- Intelligemt isolation for bus faults and crash
- Space-saving slim 17.5 mm device
- All connectionsn can be plugged in using a screw ternimal block

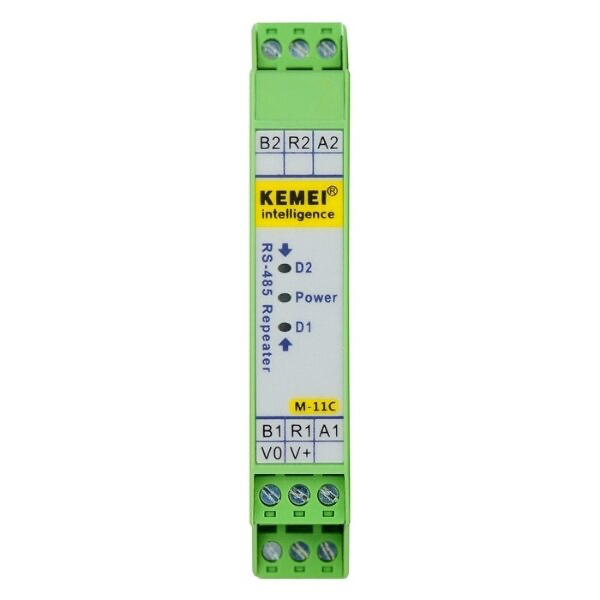

PIN definition
PIN
Name
Description
1
V0
Power supply -
2
V+
Power supply +
3
NC
4
B1
Port 1, Data line -
5
R1
Shorted R1 and B1 to enable internal Termination resistor 120R
6
A1
Port 1, Data line +
7
B2
Port 2, Data line -
8
R2
Shorted R2 and B2 to enable internal Termination resistor 120R
9
A1
Port 2, Data line +
LED Indicator
Name
Status
Description
Power
Green
Power on
D1
Green
Data received, Port 1
D1
Red
Busm fault, Port1
D2
Green
Data received, Port 2
D2
Red
Busm fault, Port2
