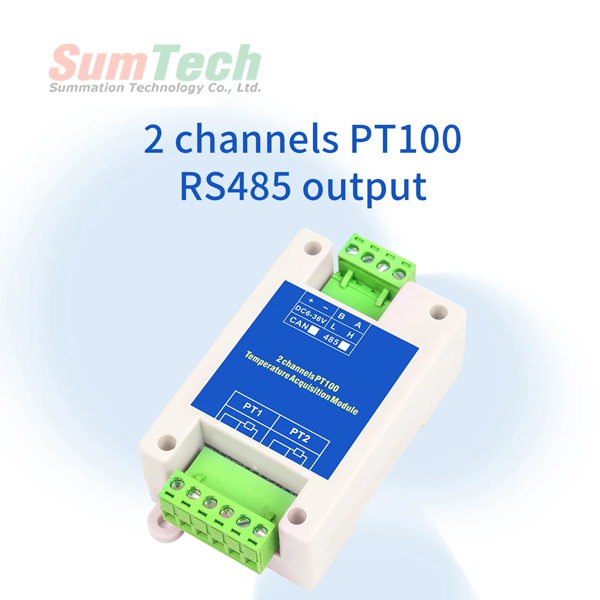

2 channels PT100 RS485

Specification

• Supply power : 6-36V DC
• Number of channels : 1-16 channel
• Power consumption : <200mW
• Temperature accuracy : ±1℃
• Acquisition rate : 100KHZ/channel
• Error alarm : Sensor disconnects detection
• Baud rate : 1200~115200 (default 9600)
• Communication port : Isolated RS485
• Temperature range : -200~850℃
• Sensor type : 2 or 3 wires
• Resolution : 0.1℃
• Data Update : 2HZ/channel

Characteristic

• Double watchdog of software and hardware, never down
• Read and use, no calculations required
• Sensor disconnects detection
• Overvoltage protection, overcurrent protection
• Simple connection, plug and play
• All channels integrated into one output
• Isolated communication, strong anti-interference
• Industrial grade quality, reverse polarity surge protection
• Digital signal output to prevent acquisition errors
• Wide measuring range, high measuring accuracy
• Isolated RS485 output, support Modbus RTU protocol
