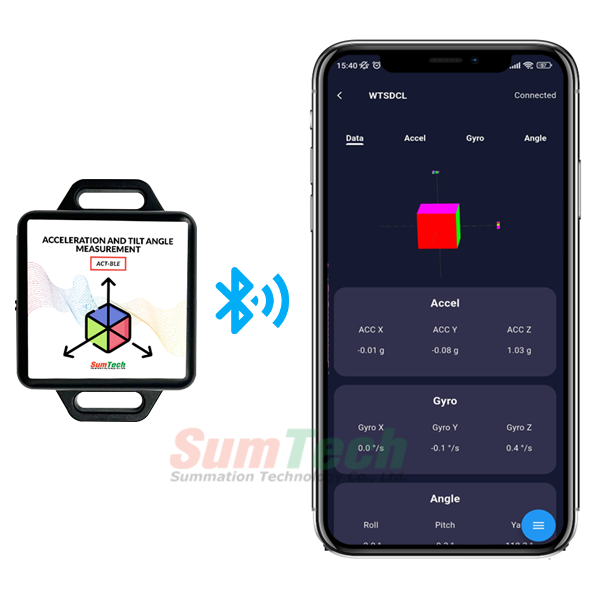

Acceleration and Tilt Angle Measurement

Technical parameter

• Voltage: 200mAh, TypeC-USB power supply: 5V
• Current: Operating current <10mA, standby current
• Interface: <50uA, Type C-USB/Bluetooth communication
• Measurement: 3-axis (acc, gyro, angle, mag field) quaternions
• Range: Acc: ±16g, Velocity: ±2000°/s, Mag: ±2Gauss, X/Z angle: ±180°, Y: ±90°
• Resolution:
  • Acc: 0.5mg/LSB (2048LSB/g)
  • Velocity: 0.061(°/s)/LSB
  • Mag: 0.0667mG/LSB
  • Angle: 0.0055°/LSB
• Angle accuracy: X,Y-axis: 0.2°, Z-axis: 1° (after calibration)
• Data output: Time, acc, angular velocity, angle, mag field
• Frequency: 0.1Hz~200Hz
• Baud rate: Analog serial port, adaptive baud rate, up to 2Mbit/s
• Usage time: 10 hours

Bluetooth 5.0 Technology

      High-performance Bluetooth 5.0 chio, fast responds Faster data transmission, lower latency, and stronger immunity to interference

สามารถใช้งานผ่านแอปพลิเคชันสำเร็จรูปของเราได้ฟรี! คลิกที่นี่ Vibration-Detector-App
